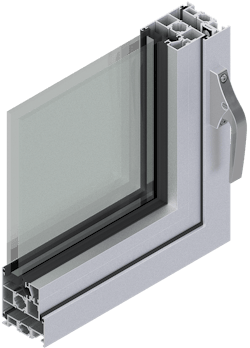

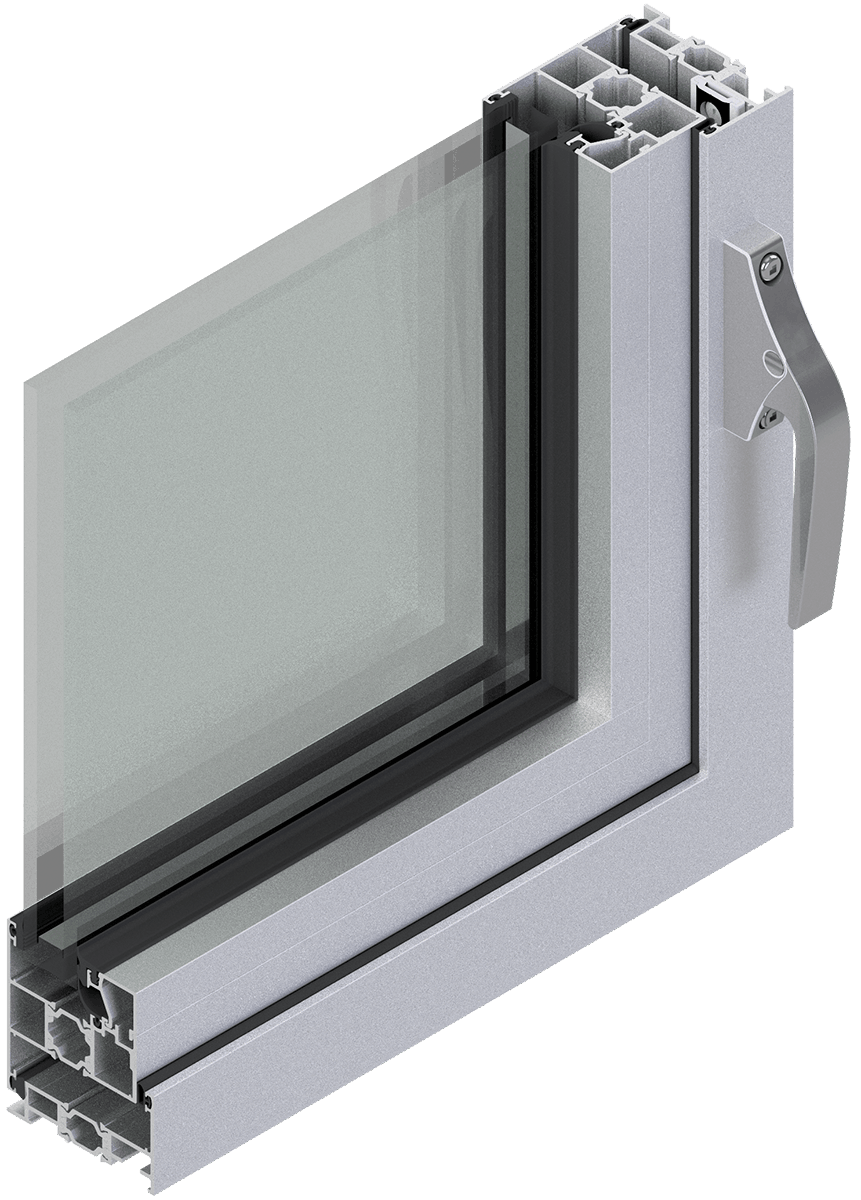

UniVent 1375AW Insert Vent Operable Windows

Let fresh air into the building using natural ventilation with Alumicor’s new UniVent 1375AW Series. These operable vents are engineered to complement and seamlessly integrate within mid- to high-rise commercial buildings’ storefront, fixed windows and curtainwall systems

These AW rated vents have a frame depth of 2-3/4″ (70mm) for dual glazed and 3-1/2″ (89mm) for triple glazed IGU’s with mitered/sealed corners and crimped on an “L” shaped clip. Dimensions span up to 72 by 36 inches (1828.8mm x 914.4mm) for hoppers, and up to 36 by 62 (914.4mm x 1574.8mm) inches for casements.

UniVent 1375AW Series are tested to meet AW Performance Class, the most stringent performance and durability requirements of North American Fenestration Standard /Specification for windows, doors, and skylights (NAFS-17) plus the AAMA/WDMA/CSA 101/I.S.2/A440-19 Canadian supplement. This industry standard includes high-performance criteria for air, water and structural integrity, lifecycle testing to 4,000 operating cycles.

For more information, visit the product webpage.
