Tubelite INT14 Interior Flush Glaze Framing System

Blending transparency and flexibility within commercial spaces, the new Tubelite INT14 Interior Flush Glaze Framing system offers versatile design options for floor-to-ceiling room enclosures or free-standing partitions.

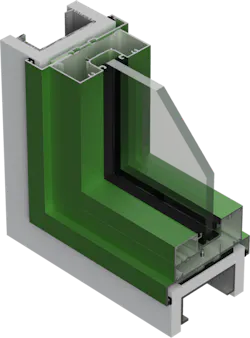

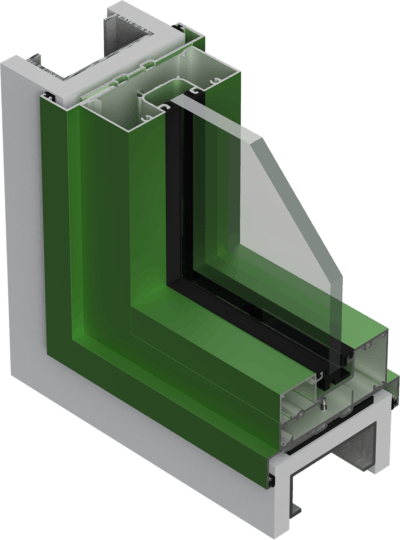

The Tubelite INT14 system has a standard 2-inch face and 4.5-inch depth for trim sightlines and optimal viewing areas. This flush-glazed system accommodates most configurations, 90-degree, 180-degree and “T” post mullion/corner options. Rotational mullions allow angular wall corners greater than 90-degrees. Butt-glazed details in both standard storefront and channel-style head and sill options also are available.

Designed with 0.5-inch glazing as standard, there is no need for adaptors to manage different glass thicknesses. High-performance acoustic glazing in standard 0.5-inch laminated glass thickness has been tested to achieve a Sound Transmission Class (STC) of 34 and an Outdoor Indoor Transmission Class (OITC) of 32.

For more information, visit the product webpage.
